Laying sheets
Sheets can be laid left to right or right to left*. Sheets should be laid perpendicular to and starting at the eaves. Don’t forget to leave an overhang to go into the gutter or beyond the wall plate (usually 50mm (2”) is sufficient.
* Please be aware that tile effect sheets can only be laid one way, Wave Tile is right to left lay. This is due to the gutter detail and the capillary groove for side laps.
When fitting non coated galvanised sheets we also recommend degreasing the sheets to remove any traces of rolling oil prior to fitting the sheets. As galvanised steel weathers the finish will become less consistent but removing rolling oil can help give the steel a more consistent weathered finish. Storing sheets indoors or under cover will also reduce the risk of water ingress between the sheets which can accelerate weathering in patches where water settles.
If you are unsure about storage and handling of your sheets please contact us for advice.
When laying sheets on an apex roof (double sided) remember to leave a gap of approx. 2” (50mm) at the ridge (tip of the apex). Also, if you are using profiled g.r.p rooflights on an apex roof and wish to keep them in the same position on both sides you will have to lay right to left on one side and left to right on the other. (Tile effect sheets do not have profiled rooflights available)
Below we have provided numbered diagrams showing you a recommended lay pattern for each direction of lay.
Alternative lay patterns may be used depending on the profile of the sheet being fitted. If you are unsure about lay patterns please speak to a qualified roofer or contact our technical team before attempting to lay and fix the cladding as mistakes made at this point could result in the need to order additional sheets.

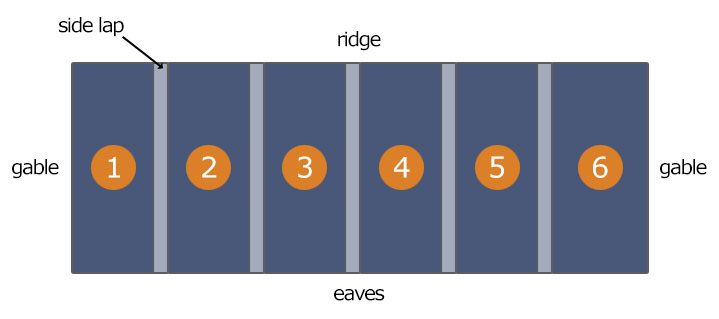

One run of sheets from ridge to eaves left to right lay (L/R)
Two runs of sheets from ridge to eaves left to right lay (L/R)
Three runs of sheets from ridge to eaves left to right lay (L/R)

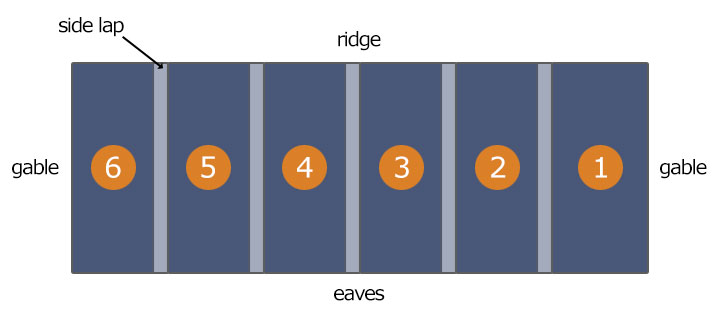

One run of sheets from ridge to eaves right to left lay (R/L)

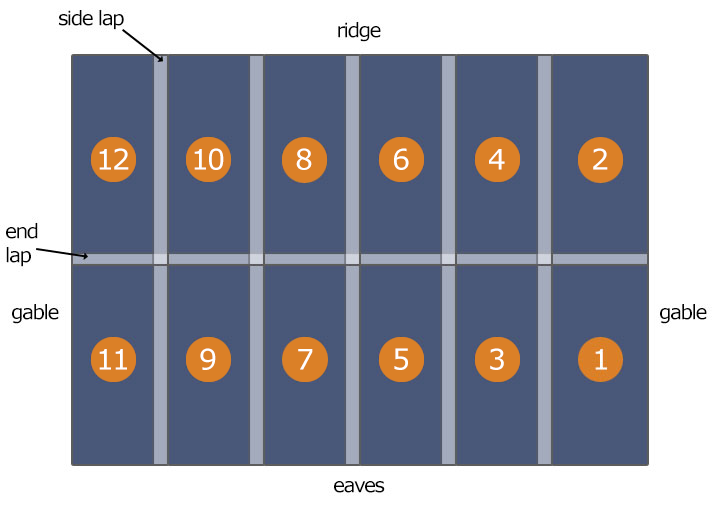

Two run of sheets from ridge to eaves right to left lay (R/L)

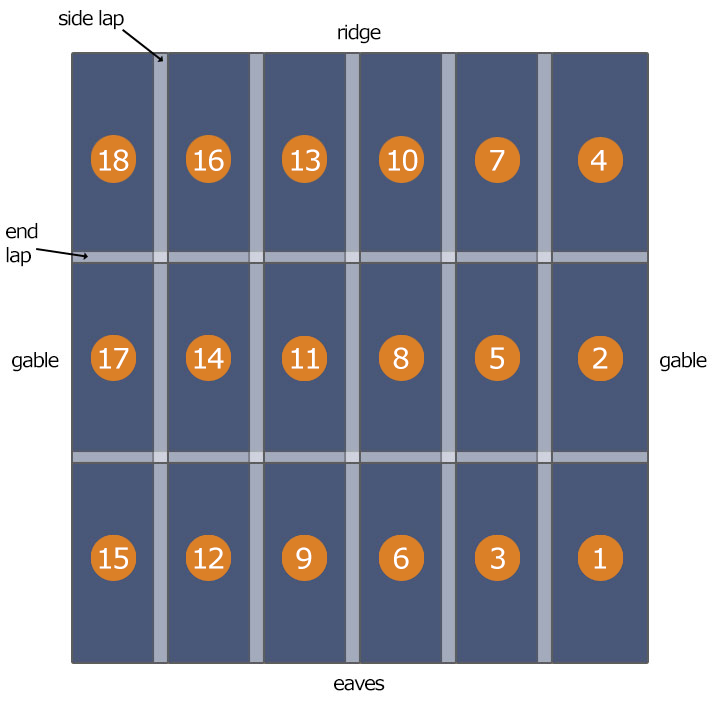

Three run of sheets from ridge to eaves right to left lay (R/L)
Help guides provides general advice of how to measure up and install a single skin roofing system. Due to the complex nature of some buildings, the information in our guides are not comprehensive and different techniques will be applicable depending on the building scenario. More specific guidance can be obtained by contacting our technical team on 01384 273811
Using the information in our guides are at your own risk. Accord Steel Cladding Ltd accept no liability for any loss or injury caused by following the information in our guides. If you are unsure about how best to install your roof, we would recommend contacting an experienced builder/roofer.
