PVC Plastisol

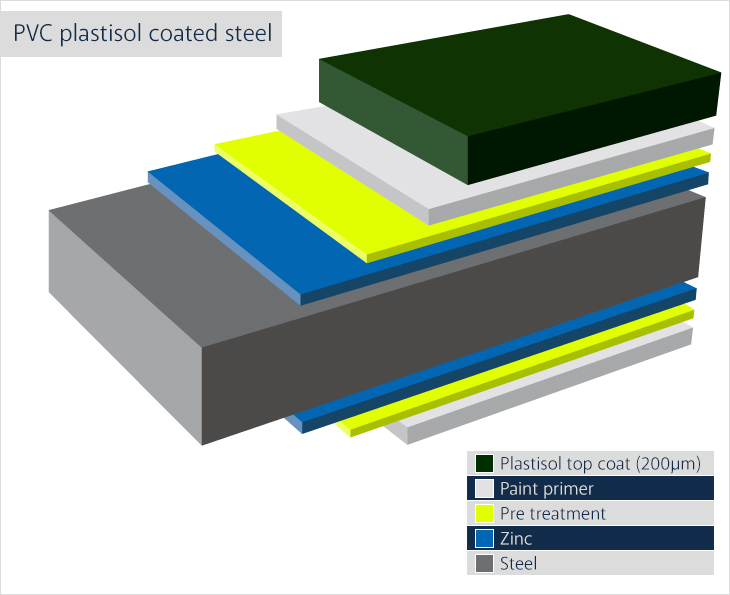

PVC Plastisol coated sheeting is a very high quality galvanised steel sheet with a primer paint and the PVC rolled onto it resulting in a very durable end product that doesn't fade or scratch easily.
Fire: When tested, Class 0 in accordance with building regulations BS476 part 6 1989 and Part 7 1987.
Benefits
- 200µm durable, abrasion-resistant topcoat
- Leathergrain embossed finish
- Wide colour range
- Galvanised substrate to BS EN 10346:2009 and primed undercoat offering excellent corrosion resistance
- Manufacturers coating guarantee of up to 25 years to first maintenance*
*20 years for coastal areas (some colours 10 to 15 years see colours for more details)
Typical properties
| Finish property | Unit of measure | Value | Test standard |
|---|---|---|---|
| Nominal organic coating thickness | (µm) | 200 | EN13523-1 |
| Gloss (60°) | (%) | 15-35 | EN13523-2 |
| Scratch resistance | (g) | 3500 | EN13523-12 |
| Abrasion resistance (Taber, 250 rev, 1kg) | (mg) | <12 | EN13523-16 |
| Flexibility (reverse impact) | (J) | ≥18 | EN13523-5 |
| Adhesion (cross hatch) | (%) | 100 Pass | EN13523-6 |
| Minimum bend radius | (T) | 0 T@16°C | EN13523-7 |
| Corrosion resistance: Salt Spray Humidity |
(h) (h) |
1000 1000 |
EN13523-8 EN13523-25 |
| Max continuous operating temp. | (°C) | 60 | |
| Reaction to fire | Class 0 | BS476 part 6 & 7 | |
| Resistance to fire | Class AA | BS476 part 3 | |
| C-s3,d0 roof and wall | BS EN 13501 | ||
| External Fire Performance | Broof T4,T3,T2,T1 | BS EN 13501 |
General notes: The figures contained in this table are typical for solid colours and do not constitute a specification.
Steel gauges
0.5mm (24swg)
0.5mm is a lightweight gauge ideal for use on walls and smaller domestic and agricultural roofs. With a typical weight of only 4.8kg/m². 0.5mm gauge steel cladding is especially useful when weight is a concern. Please be aware that if you are planning to use 0.5mm gauge sheets on your roof then you must support the sheets more often¹, typically every 0.6m (or 2ft).
0.7mm (22swg)
0.7mm steel cladding is the established standard for roofing applications with a typical weight of 6.8Kg/m². 0.7mm gauge can typically be supported¹ every 1m.
