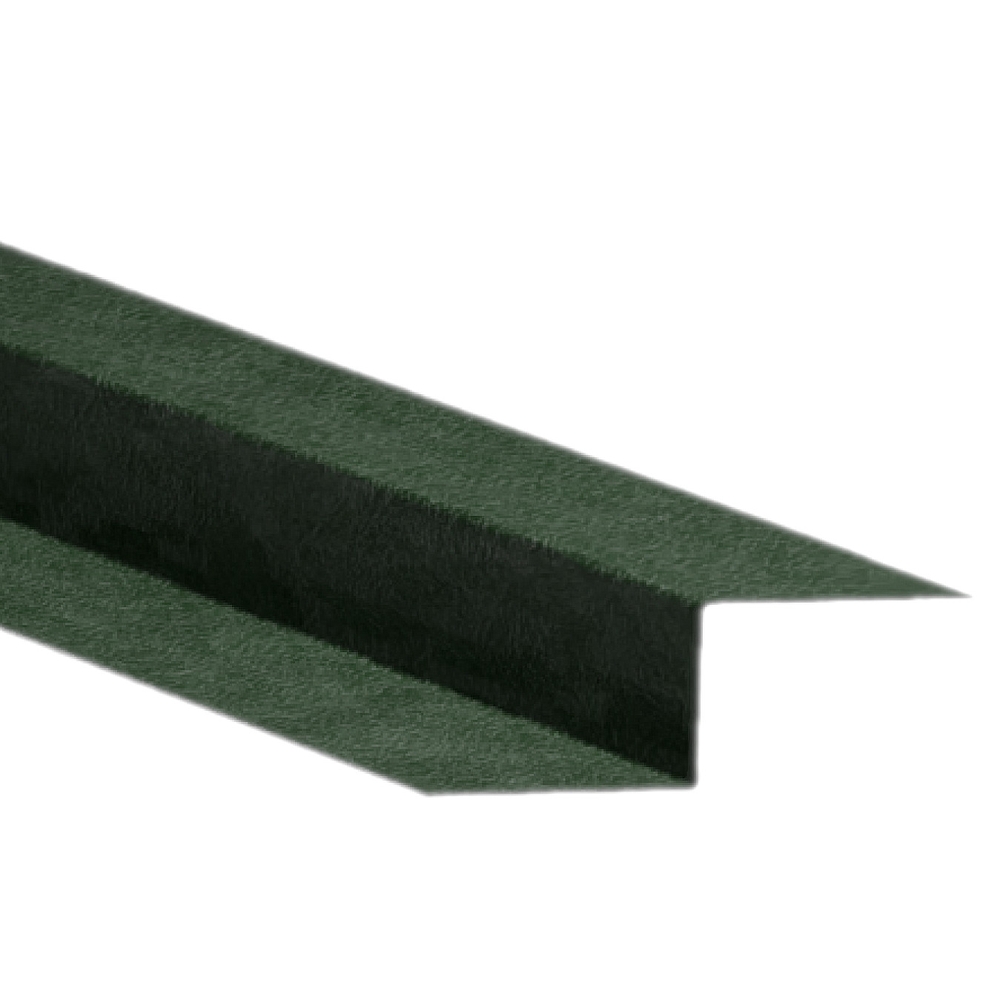

Flashing Z Supports – 3m Steel Sections for Flashing Reinforcement
Our Flashing Z Supports are designed to provide additional reinforcement for flashings that span across profiled roof sheets—especially where multiple corrugations are not fully spanned. These supports help maintain flashing alignment and prevent sagging or distortion over time.
Product Specifications
- Length: 3.000m
- Flange Width: 50mm top and bottom
- Height: Variable—made to suit roof sheet profile height
- Material: 0.7mm steel
- Finishes: Galvanised, Polyester Paint, Plastisol (matched to flashing finish)
- Application: Flashing reinforcement across profiled roof sheets
Key Features
- Provides support for flashings over wide sheet spans
- Prevents sagging and misalignment in flashing runs
- Custom height ensures flush fit with roof sheet profile
- 50mm flanges allow secure fixing to substrate or sheet
- Available in finishes to match your flashing system
Applications
- Roof flashing reinforcement
- Cladding edge support
- Wide-span flashing installations
- Retrofit and new build roof systems
Flashing Z Supports are a simple yet effective way to ensure long-term performance and visual consistency in your roof flashing system. Contact us to specify your profile height and finish requirements.
Pricing
| Description | Price |
|---|---|
| 3m Galvanised 0.7mm Flashing Z Support (50mm x profile height x 50mm) | £11.00+VAT |
| 3m Polyester Paint 0.7mm Flashing Z Support (50mm x profile height x 50mm) | £11.75+VAT |
| 3m Plastisol 0.7mm Flashing Z Support (50mm x profile height x 50mm) | £12.60+VAT |
| 3m Plastisol 0.7mm Flashing Z Support (50mm x profile height x 50mm) | £12.60+VAT |
| 3m Plastisol 0.7mm Flashing Z Support (50mm x profile height x 50mm) | £19.20+VAT |
| 3m XL Forte 0.7mm Flashing Z Support (50mm x profile height x 50mm) | £14.75+VAT |
| 3m GraniteHDX 0.7mm Flashing Z Support (50mm x profile height x 50mm) | £17.42+VAT |
(Prices are excluding VAT, delivery & applicable fees, unless otherwise stated.)
3m Galvanised 0.7mm Flashing Z Support (50mm x profile height x 50mm)
Made to order from
£11.00+VAT
