Bars

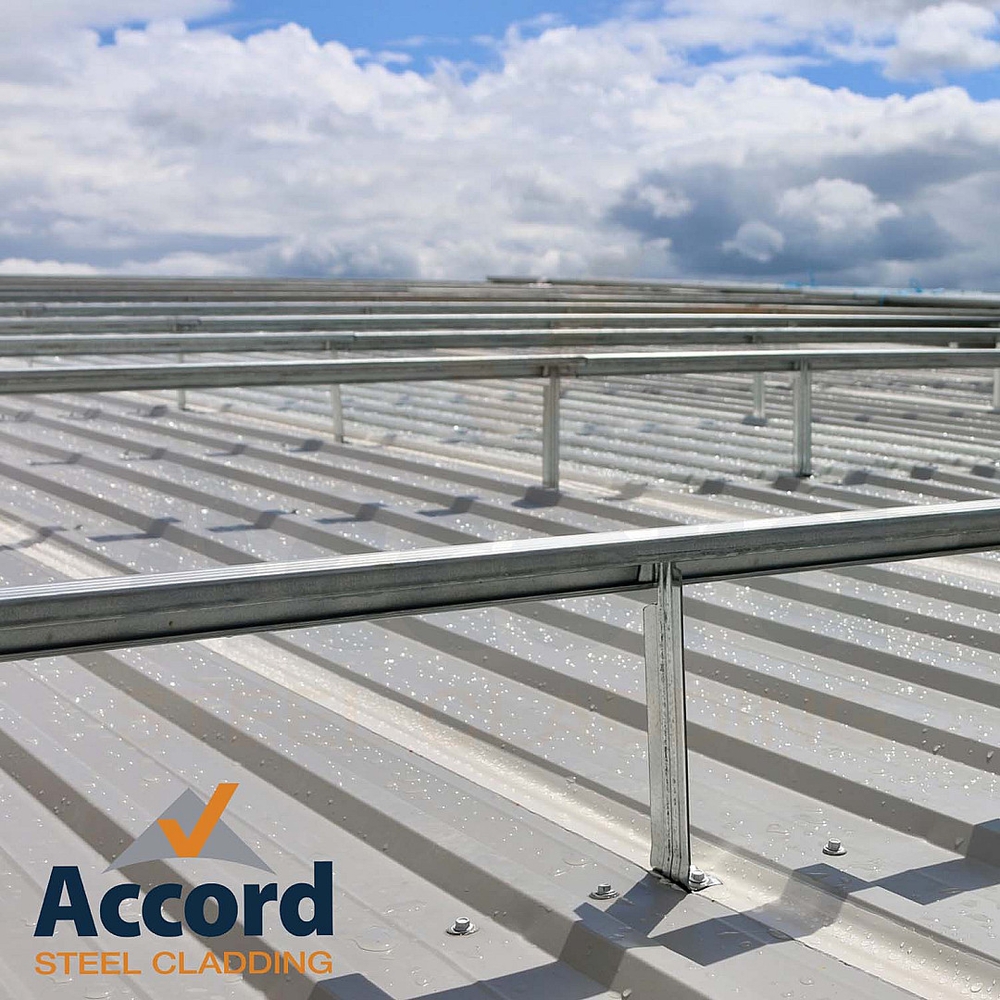

Grid system support bars are manufactured from 1.25mm thick galvanised steel and are supplied in either 1m, 2m or 3m lengths to suit your purlin run. Grid bars incorporate a spigot end for easy on-site connection.
- 3m AshGrid AG40 Support Channel (Fixed Effective Length
- 2m AshGrid AG40 Support Channel (Fixed Effective Length)
- 1m AshGrid AG40 Support Channel (Fixed Effective Length)
Brackets
Grid bar high performance brackets are manufactured from 1.6mm thick galvanised steel supplied with a 3mm thick EPDM base thermal pad.
- 60mm AshGrid AB40 High Perfomance Bracket
- 80mm AshGrid AB40 High Perfomance Bracket
- 85mm AshGrid AB40 High Perfomance Bracket
- 90mm AshGrid AB40 High Perfomance Bracket
- 100mm AshGrid AB40 High Perfomance Bracket
- 110mm AshGrid AB40 High Perfomance Bracket
- 120mm AshGrid AB40 High Perfomance Bracket
- 130mm AshGrid AB40 High Perfomance Bracket
- 140mm AshGrid AB40 High Perfomance Bracket
- 150mm AshGrid AB40 High Perfomance Bracket
- 160mm AshGrid AB40 High Perfomance Bracket
- 170mm AshGrid AB40 High Perfomance Bracket
- 180mm AshGrid AB40 High Perfomance Bracket
- 190mm AshGrid AB40 High Perfomance Bracket
