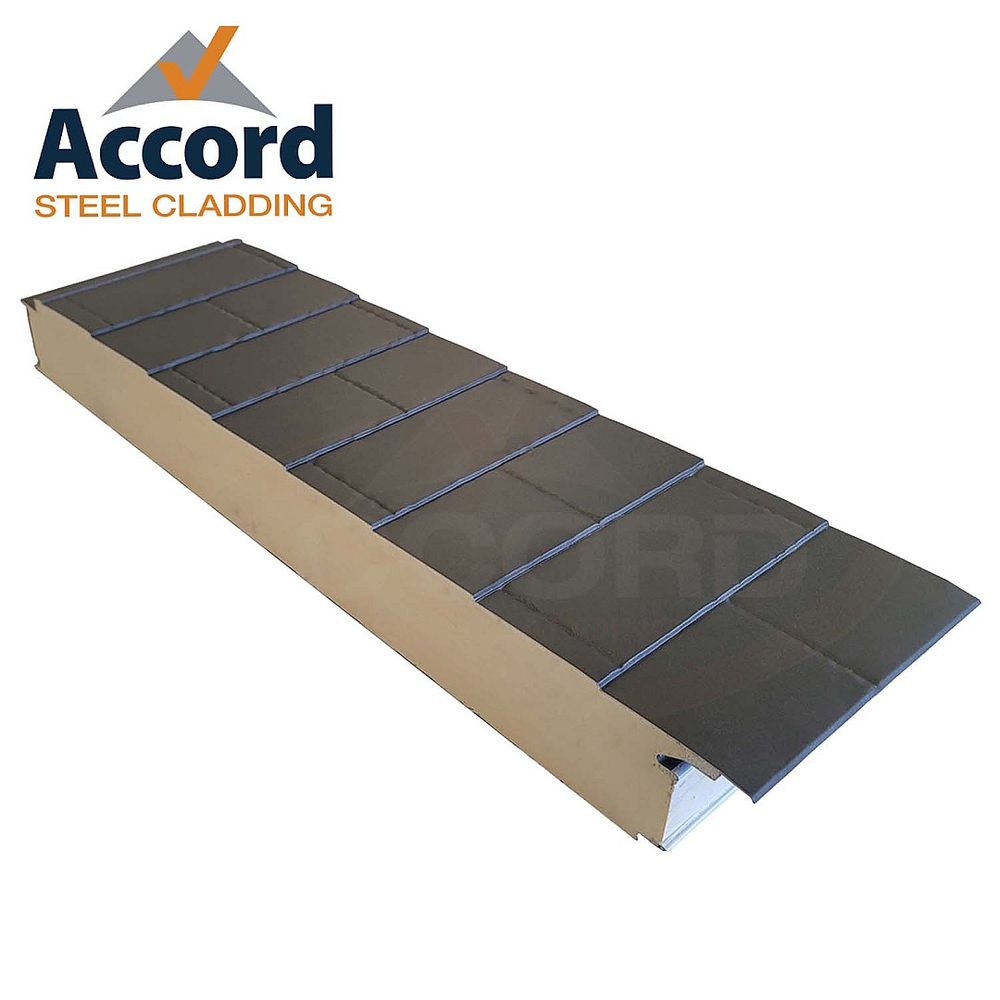

Insulated Slate Effect Metal Composite Roof Sheets
Insulated Slate Effect Metal Composite Roof Sheets
Insulated Roofing Sheets with an external metal sheet replicating a traditional slate tile.
The secret-fix design of this roof panel provides hidden fixation for a seamless transition between the panels, which results in a superbly smooth roof aesthetic.
£-.--+VAT
Product Details
| Core Thickness (mm) | Weight (kg/m²) | U-Value (W/m²K) |
|---|---|---|
| 60mm | 10.44 | 0.39 |
| 120mm | 12.72 | 0.19 |
* Price for panels only and does not include the ancillary items or delivery costs.
Please email sales@steelroofsheets.co.uk for a full quotation for your project.
| Property | Value |
|---|---|
| Slope Coverage | 1.000m |
| Minimum Width | 2.500m |
| Maximum Width | 10.000m |
| Width Increments | 0.500m |
| External Coating | Textured Paint RAL 7024 (40μ) 0.5mm Coated Steel |
| Insulation Core | Polyisocyanurate (PIR) foam |
| Internal Coating | White Liner RAL 9002 (15μ) 0.4mm Coated Steel |
| Fire classification | B-s2,d0 (BS EN 13501-1) |
| Minimum Roof Slope | 25° |
| Purlin Spacing | 1500mm |
| Tile Size | 125mm x 250mm |
| Lay | Horizontal |
| Fixing Method | Secret Fix - Tek screws hidden under lapping detail. |
Advantages
- Low weight requiring a light substructure
- High thermal resistance
- Quick assembly
- Unique finish
- No visible screws
Insulated Slate Effect Metal Composite Roof Sheets
These slate-effect insulated roof sheets combine the timeless elegance of natural slate with the efficiency of a modern PIR composite panel. Designed for pitched roofs, they offer a lightweight, fire-rated solution ideal for residential and modular construction.
Product Specifications
- Profile: Embossed slate-effect metal sheet
- Cover Width: Approx. 1000mm
- Core: PIR (Polyisocyanurate) insulation
- Lengths: Cut to size (typically 2.5m to 10m)
- External Finish: Textured polyester or plastisol slate tones
- Internal Liner: White steel or custom finish
- Fire Rating: Euroclass B-s2,d0 (EN 13501-1)
- Thermal Conductivity: Approx. 0.39 W/m2K / 0.19 W/m2K
- Minimum Pitch: Typically 25°
Key Features
- Authentic slate appearance with fast panelized installation
- High thermal performance with PIR insulation
- Lightweight and easy to handle on site
- Ideal for modular homes, extensions, and garden buildings
- Available in slate grey, charcoal, and custom tones
Applications
- Residential homes and extensions
- Modular buildings and garden rooms
- Holiday lodges and park homes
- Light commercial units with premium aesthetic
These insulated slate-effect panels offer a smart alternative to traditional slate—reducing install time and improving thermal performance. Contact us for samples, colour charts, or a tailored quote.
