JI 1000ROOF Insulated Composite Panels
JI 1000ROOF Insulated Composite Panels
A composite panel is a simple sandwich of a metal profile outer sheet, insulation filler and an internal liner. Insulated composite panels are an ideal one stop solution to insulate and clad your building.
We offer JI1000 ROOF insulated cladding manufactured to your specification delivered direct from manufacturing.
JI1000 ROOF sheets are available in core panel thickness of 40mm to 150mm with U values ranging from 0.46W/m2K to 0.14W/m2K
Product Details
JI 1000ROOF – Insulated Composite Roof Panels

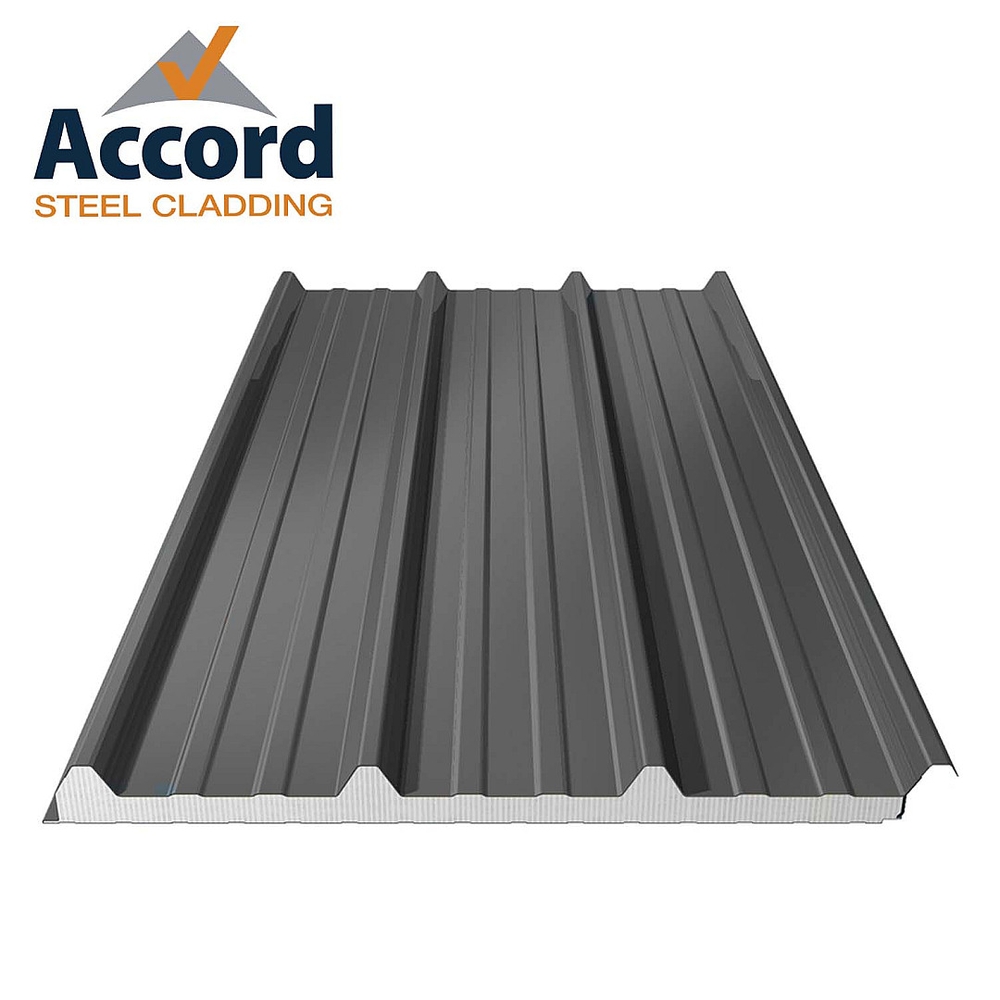

The JI 1000ROOF panel is a factory-engineered insulated composite cladding system designed for pitched roofs. Each panel consists of a metal profile outer sheet, PIR insulation core, and internal liner—offering a one-stop solution for thermal performance, acoustic control, and fast installation.
Technical Specifications
- Profile: JI1000ROOF
- Cover Width: 1000mm
- Profile Height: 45mm
- Pitch: 333mm
- Minimum Roof Pitch: 4° (after deflection)
- Lead Time: Approx. 4 to 8 weeks
- Manufactured: Cut to size
Core Thickness Options
| Core Thickness | U-Value (W/m²K) | Weight (Kg/m²) | Min Length | Max Length | Acoustic Rating (Rw) |
|---|---|---|---|---|---|
| 40mm | 0.46 | 11.71 | 2.000m + Cutback | 12.000m | 24dB (-2;-4) |
| 60mm | 0.35 | 12.51 | 1.900m + Cutback | 12.000m | 24dB (-1;-4) |
| 80mm | 0.25 | 13.30 | 1.800m + Cutback | 12.000m | 25dB (-2;-4) |
| 100mm | 0.20 | 14.10 | 1.800m + Cutback | 12.000m | 26dB (-2;-5) |
| 120mm | 0.16 | 14.98 | 1.800m + Cutback | 12.000m | 26dB (-2;-4) |
| 150mm | 0.14 | 16.09 | 1.800m + Cutback | 12.000m | 27dB (-2;-5) |
Advantages of Composite Panels
- Fast, single-fix installation
- Reliable thermal and acoustic performance
- Continuous insulation with minimal air leakage
- Eliminates cold bridging and cavity condensation
- Delivered direct from manufacturing to your specification
Applications
- Sheds and garages
- Warehouses and logistics units
- Industrial and commercial buildings
- Schools and educational facilities
- Agricultural and equestrian structures
JI 1000ROOF panels offer a robust, thermally efficient solution for modern roof cladding. Contact us to discuss your specification, request datasheets, or get a tailored quote.
