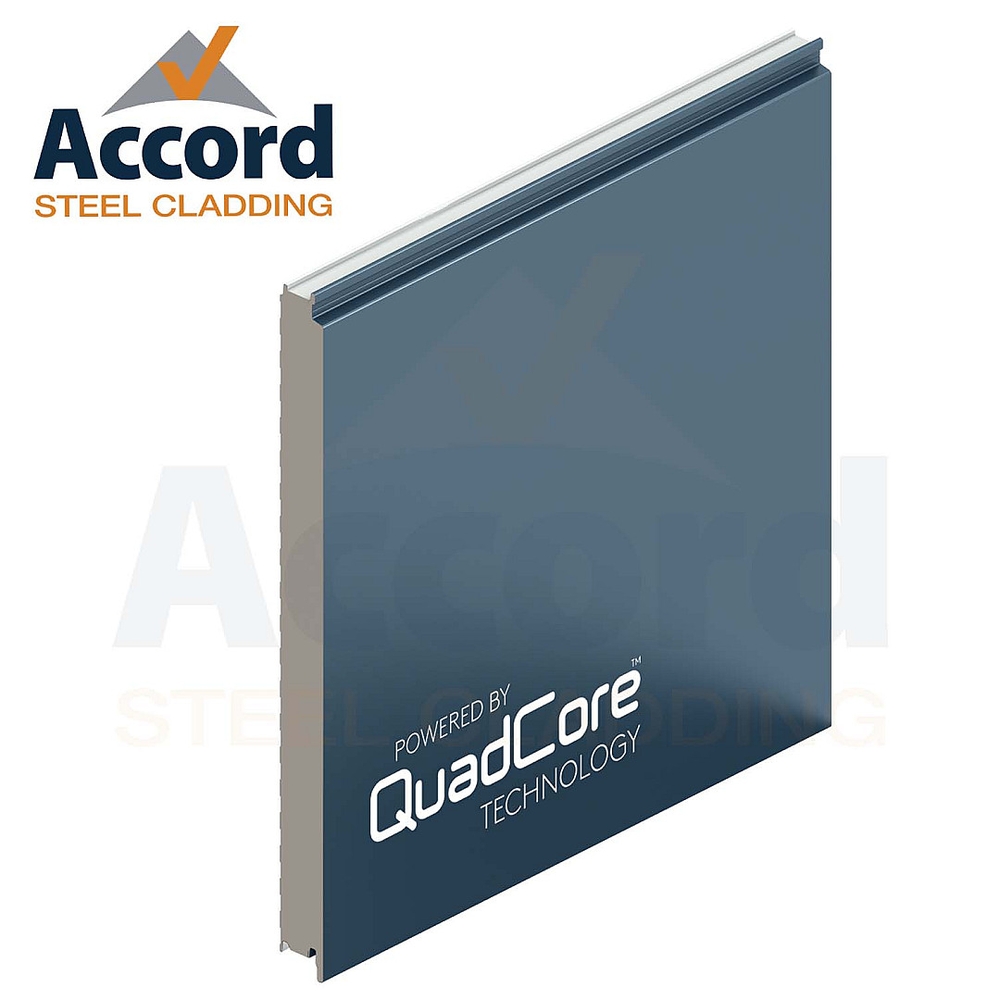

Kingspan Quadcore AWP Flat Composite Wall Panels (KS1000FL)
Kingspan Quadcore AWP Flat Composite Wall Panels (KS1000FL)
A composite panel is a simple sandwich of a metal profile outer sheet, QuadCore™ insulation filler and an internal liner. Insulated composite panels are an ideal one stop solution to insulate and clad your building.
We offer Kingspan QuadCore™ AWP Flat Flat composite cladding (previously known as KS1000FL) manufactured to your specification delivered direct from manufacturing.
Kingspan QuadCore™ AWP Flat composite cladding (previously known as KS1000FL) is available in core panel thickness of 45mm to 150mm with U values ranging from 0.52W/m2K to 0.13W/m2K
Kingspan QuadCore™ AWP Flat composite cladding is also available in 900mm cover (KS900FL) & 600mm (KS600FL) - please contact us for more details
Product Details
Kingspan KS1000FL – Flat Quadcore Architectural Wall Panel
The KS1000FL is a premium flat insulated wall panel from Kingspan’s Architectural Wall Panel (AWP) range. Featuring advanced Quadcore™ technology, it delivers exceptional thermal performance, fire resistance, and acoustic control in a sleek, flat profile—ideal for modern commercial and industrial facades.
Key Features
- Core: Quadcore™ insulation
- Panel Width: 1000mm cover width
- Profile: Flat external face for architectural finish
- Thermal Performance: U-values as low as 0.12 W/m²K
- Fire Rating: FM Approved, LPCB certified
- Acoustic Rating: Up to Rw 25dB depending on thickness
- Lengths: Custom cut from 1.8m to 12.0m
- Orientation: Vertical or horizontal installation
- Lead Time: Typically 4 to 6 weeks
Advantages of Quadcore™ Panels
- Superior thermal efficiency with thinner profiles
- Enhanced fire performance and reduced smoke toxicity
- Robust acoustic insulation for noise-sensitive environments
- Flat, clean aesthetic for architectural applications
- Fast, single-fix installation with concealed fixings
- Long-term durability and low maintenance
Applications
- Commercial buildings and retail units
- Industrial facilities and logistics hubs
- Schools, colleges, and public sector buildings
- Healthcare and cleanroom environments
- Architectural facades and feature walls
Kingspan KS1000FL panels combine performance and aesthetics for demanding wall cladding projects. Contact us for datasheets, colour options, or a tailored quote.
